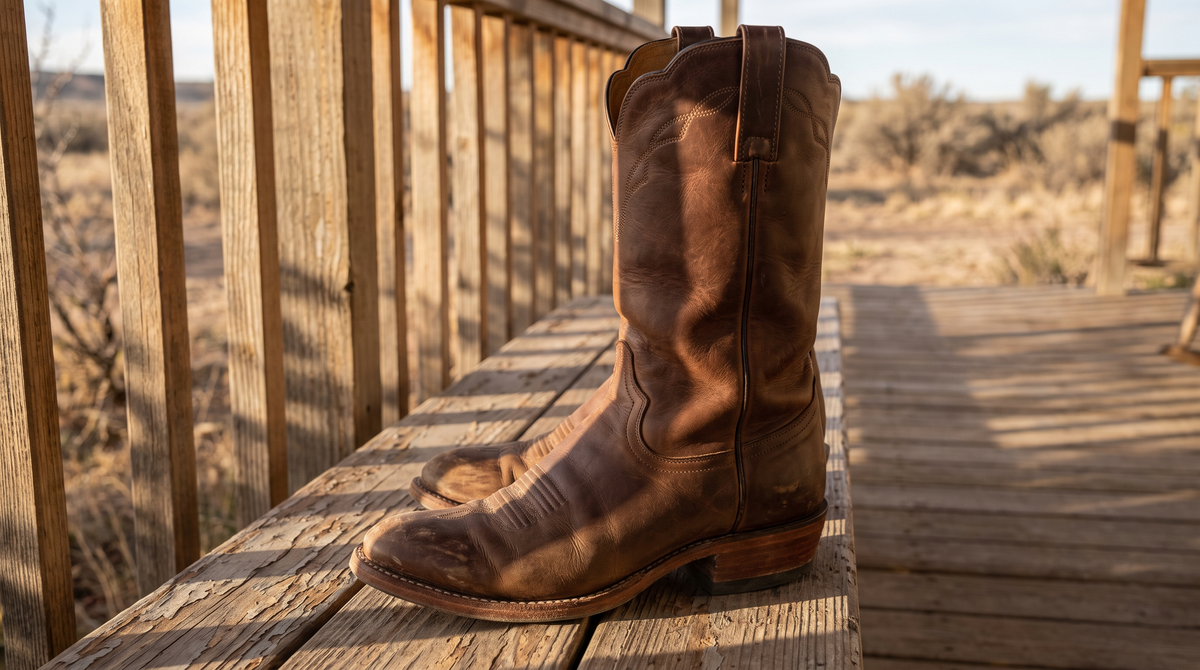

Shaft on top, vamp and toe in front, heel and welt below.
A cowboy boot has about a dozen main parts. The shaft covers the leg and carries the pull straps, the vamp and toe box cover the foot, and the heel, welt and outsole form the base. Each part has a job, and the shaft, toe and heel set the look.
Most parts guides give one maker's glossary and stop. This page adds two things they leave out: the words where makers disagree, and real measurements from a boot you can buy, such as The Shoal Creek.
What are the parts of a cowboy boot called?
The main parts are the shaft, quarters, pull straps, scallop, piping, vamp, instep, toe box, counter, heel, insole, welt and outsole. Lucchese numbers fifteen parts on its boot diagram, and South Texas Tack defines more than twenty-five. The table below follows the boot from the top down.
| Part | Where it sits | What it does |
|---|---|---|
| Pull straps | Top of the shaft, both sides | Leather loops used to pull the boot on (South Texas Tack); they sit at the very top of the shaft, one each side (Lucchese) |
| Scallop (dip) | Top centre of the shaft | The cut-out dip between the pull straps (Lucchese) |
| Shaft and quarters | Above the ankle, up to mid-calf | The tall vertical portion; the front and back quarters make it up (Lucchese, Jackson's Western) |
| Piping | Shaft seams or collar | Small decorative leather tubes that finish the look of the boot (South Texas Tack); Jackson's Western adds that it secures the shaft |
| Vamp | Front of the foot, toe to shaft | Covers the top of the foot; the leather your trousers leave visible (Lucchese, Alvies) |
| Toe box | Inside the toe | Keeps the toe shape (South Texas Tack, Alvies) |
| Counter | Back, low, around the heel | Supports the heel; Alvies boots add a heel counter insert (Alvies) |
| Heel | Under the rear of the foot | Traditionally stacked leather; in the saddle, the tall heel minimized the risk of the foot sliding forward through the stirrup (Wikipedia) |
| Insole | Inside, under the foot | A layer of leather between the upper and the welt (South Texas Tack) |
| Welt | Edge where upper meets sole | The strip the sole is stitched to (Jackson's Western) |
| Outsole | Bottom, meets the ground | Slick leather on most Western boots slides into the stirrup (Jackson's Western) |
What's the thing called on the back of a cowboy boot?
The loops at the top of the shaft are pull straps, and the small ridge just above the heel is the spur ridge. Lucchese lists it as the spur ridge, a "small horizontal ridge located on the back of the boot just above the heel." South Texas Tack defines a related term, the spur shelf, where the heel extends slightly past the counter so a spur can sit on it.
South Texas Tack also lists "mule tabs," its term for extra-long pull straps. Some boots swap the straps for two pull holes on either side.
What are the things on cowboy boots?
Beyond the structural parts, makers name a set of decorative details: stitching, inlays, overlays and toe stitching. South Texas Tack defines an inlay as contrasting layers of leather, also called a cutout, and an overlay as a decorative pattern sewn on top. Toe stitching goes by names such as "medallion" and "toe bug."
The house also sells boot add-ons: Boot Tassels, Boot Fringe and a Boot Pull Clip, which Alvies describes as a patent-pending brass clip for fastening a pouch inside the boot. The full set lives in boot accessories.
Do boot makers name the parts the same way?
No, makers use the same words for different things. Five terms show it: scallop, toe box, insole, instep and piping. When a product page uses one of them, read where the part sits and ignore the label.
| Term | One maker says | Another says |
|---|---|---|
| Scallop | "U-shaped cutout" at the top centre of the shaft (Lucchese) | "The V-shape at the top of the shaft," also called a dip (South Texas Tack) |
| Toe box | The frontmost, rounded part of the boot (Lucchese) | Stiff material inside the toe that holds its shape (South Texas Tack, Alvies) |
| Insole | A layer between the upper and the welt (South Texas Tack) | The material between the midsole and your foot (Cowtown Cowboy Outfitters) |
| Instep | The curved area where the shaft meets the front of the foot, above the arch (Lucchese) | The section surrounding the arch (South Texas Tack); the upper part that covers the foot (Jackson's Western) |
| Piping | Vertical seams down both sides of the shaft (Lucchese) | Small decorative leather tubes on seams or collar (South Texas Tack) |
All of them describe the same boot. The glossaries differ in how they slice it.
How do the parts show up in a real boot's specs?
Product pages report parts as measurements: shaft height, shaft circumference, heel height and toe shape. The Shoal Creek lists a 13-inch shaft, a 14.25 to 15.25-inch circumference and a 1.5-inch heel. The Comal is described with a quarter-inch snip toe, and The Manchaca's copy describes the roper boot as having a short heel and rounded toe.
| Boot | Part named | What the maker says |
|---|---|---|
| The Shoal Creek | Shaft, circumference, heel | 13 in shaft, 14.25 to 15.25 in circumference, 1.5 in heel |
| The Comal | Toe | A quarter-inch snip toe |
| The Manchaca | Heel and toe | Roper style: a short heel and a rounded toe |
Beyond the measurements, the Alvies FAQ says its boots are handcrafted with a three-quarter Goodyear welt, which lets you resole them. Alvies also says its soles are leather and its boots carry a heel counter. Shaft circumference is the number to check first if the calf is your fit question.
Where can you read more on toes, heels and welts?
Three guides cover the parts that change the most between boots. Cowboy boot toe shapes covers snip, square and round. Cowboy boot heel types compares heel heights maker by maker. Goodyear welt construction explains how the welt joins upper and sole.
For how the inside of the boot should feel, read how should cowboy boots fit.
Quick answers
What is the vamp on a cowboy boot?
The vamp is the front section that covers the top of the foot. Lucchese runs it from the toe to the shaft, and South Texas Tack says it covers the instep and toe. It is the leather people see when trousers cover the shaft.
What is the counter?
The counter is the part around the back of the heel that supports it. South Texas Tack describes it as the leather covering the heel of the upper, and Jackson's Western as the rear bottom section. Alvies adds a counter insert that reinforces the heel cup.
Are pull straps and mule tabs the same?
South Texas Tack lists mule tabs as extra-long pull straps, and also as another name for pull tabs. South Texas Tack uses the term both ways, so check the product photo.
What is a last?
A last is the foot-shaped mold a bootmaker builds the boot around. Jackson's Western says it sets fit and structure, and Alvies calls it a plastic mold.
What is the throat of a boot?
South Texas Tack uses "waist" or "throat" for the spot where the shaft meets the upper at the ankle. The other glossaries read for this guide do not list it.
Bottom line
A cowboy boot reads best as three zones: shaft on top, vamp and toe box in front, and heel, welt and outsole below. Makers define scallop, toe box, insole, instep and piping differently, so judge each by where it sits. Check the measurements on the product page, starting with shaft height and circumference.
